Datapoints for gd196 -> n + gd195
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.010764e-64 |
| 0.15 | 2.327905e-38 |
| 0.2 | 1.195345e-25 |
| 0.3 | 6.184739e-13 |
| 0.4 | 1.429204e-06 |
| 0.5 | 9.589469e-03 |
| 0.6 | 3.475734e+00 |
| 0.7 | 2.377795e+02 |
| 0.8 | 5.733654e+03 |
| 0.9 | 6.891406e+04 |
| 1 | 5.081543e+05 |
| 1.5 | 2.153769e+08 |
| 2 | 4.472303e+09 |
| 2.5 | 2.620854e+10 |
| 3 | 7.837453e+10 |
| 3.5 | 1.551057e+11 |
| 4 | 2.323021e+11 |
| 4.5 | 2.844836e+11 |
| 5 | 2.990100e+11 |
| 6 | 2.353715e+11 |
| 7 | 1.332664e+11 |
| 8 | 5.940931e+10 |
| 9 | 2.205689e+10 |
| 10 | 7.081841e+09 |

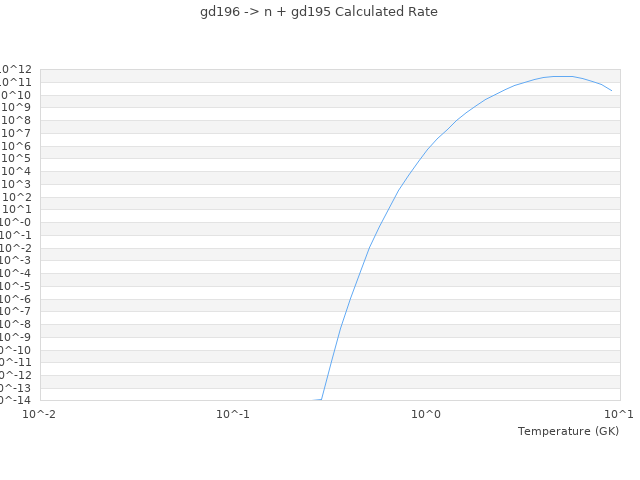

| View Graph | |
