Datapoints for n + gd196 -> gd197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.143973e-08 |
| 0.15 | 9.009901e-06 |
| 0.2 | 1.126328e-04 |
| 0.3 | 1.684569e-03 |
| 0.4 | 8.333670e-03 |
| 0.5 | 2.619269e-02 |
| 0.6 | 6.410271e-02 |
| 0.7 | 1.332959e-01 |
| 0.8 | 2.465142e-01 |
| 0.9 | 4.167060e-01 |
| 1 | 6.555234e-01 |
| 1.5 | 3.038661e+00 |
| 2 | 6.617904e+00 |
| 2.5 | 9.254446e+00 |
| 3 | 9.678073e+00 |
| 3.5 | 8.259781e+00 |
| 4 | 6.078172e+00 |
| 4.5 | 4.001628e+00 |
| 5 | 2.419033e+00 |
| 6 | 7.347612e-01 |
| 7 | 1.888083e-01 |
| 8 | 4.369852e-02 |
| 9 | 9.486938e-03 |
| 10 | 1.986092e-03 |

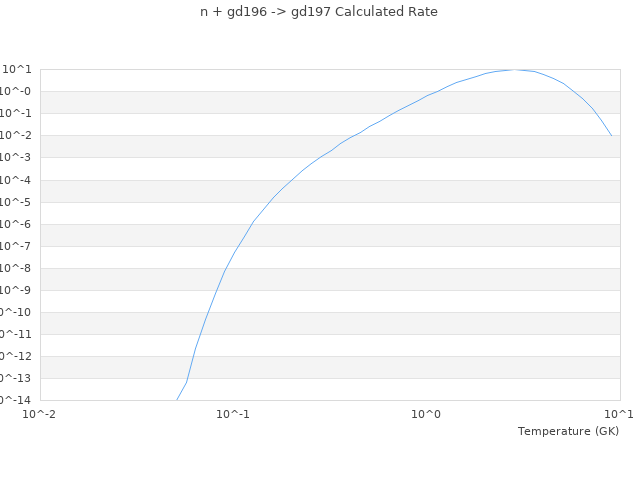

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
