Datapoints for tb197 -> p + gd196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 8.517351e-285 |
| 0.4 | 9.077718e-211 |
| 0.5 | 1.276197e-167 |
| 0.6 | 1.803674e-139 |
| 0.7 | 1.237731e-119 |
| 0.8 | 7.620889e-105 |
| 0.9 | 2.477792e-93 |
| 1 | 4.605395e-84 |
| 1.5 | 3.730337e-55 |
| 2 | 3.117615e-39 |
| 2.5 | 7.494583e-29 |
| 3 | 1.327454e-21 |
| 3.5 | 2.115351e-16 |
| 4 | 1.233199e-12 |
| 4.5 | 6.519462e-10 |
| 5 | 5.960540e-08 |
| 6 | 1.641384e-05 |
| 7 | 4.435464e-04 |
| 8 | 8.186770e-03 |
| 9 | 4.217200e-01 |
| 10 | 1.751635e+02 |

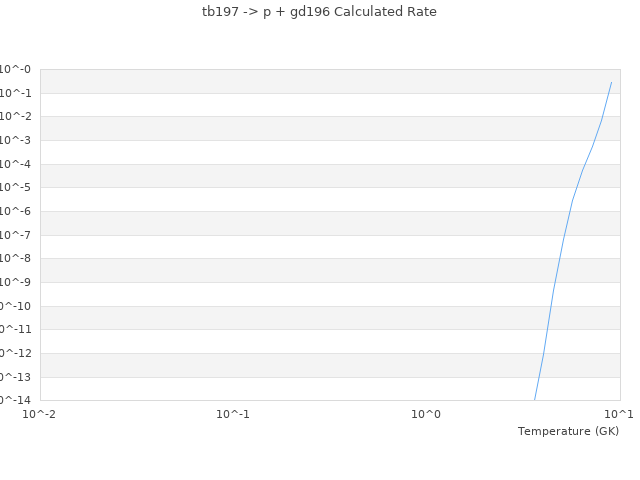

| View Graph | |
