Datapoints for p + gd196 -> tb197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.779680e-131 |
| 0.15 | 1.298665e-79 |
| 0.2 | 1.955054e-54 |
| 0.3 | 2.575983e-32 |
| 0.4 | 8.876914e-24 |
| 0.5 | 5.875856e-20 |
| 0.6 | 4.779269e-18 |
| 0.7 | 5.720385e-17 |
| 0.8 | 2.926364e-16 |
| 0.9 | 1.041920e-15 |
| 1 | 3.245944e-15 |
| 1.5 | 1.082698e-12 |
| 2 | 5.111926e-10 |
| 2.5 | 1.281714e-07 |
| 3 | 1.030519e-05 |
| 3.5 | 2.417695e-04 |
| 4 | 1.833863e-03 |
| 4.5 | 5.408187e-03 |
| 5 | 7.657332e-03 |
| 6 | 3.918432e-03 |
| 7 | 1.144518e-03 |
| 8 | 6.893811e-04 |
| 9 | 2.428062e-03 |
| 10 | 1.159677e-01 |

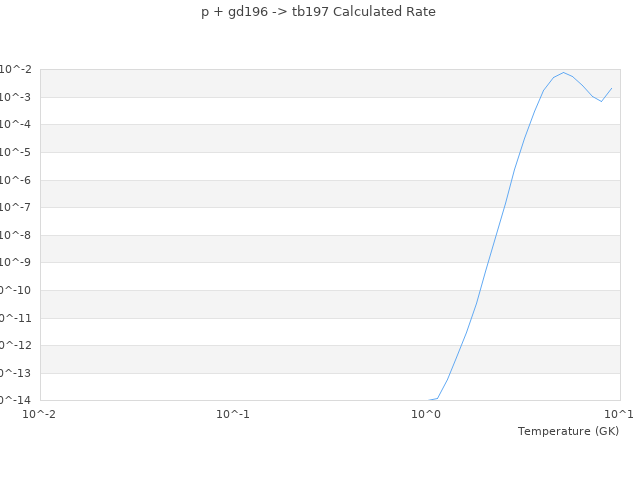

| View Graph | |
