Datapoints for p + gd196 -> n + tb196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.205924e-68 |
| 0.15 | 2.743995e-44 |
| 0.2 | 9.339298e-33 |
| 0.3 | 2.354641e-22 |
| 0.4 | 7.895285e-18 |
| 0.5 | 2.454884e-15 |
| 0.6 | 1.058848e-13 |
| 0.7 | 1.773241e-12 |
| 0.8 | 1.801792e-11 |
| 0.9 | 1.371749e-10 |
| 1 | 8.698063e-10 |
| 1.5 | 2.024665e-06 |
| 2 | 9.090092e-04 |
| 2.5 | 1.042206e-01 |
| 3 | 3.686042e+00 |
| 3.5 | 4.927510e+01 |
| 4 | 3.034333e+02 |
| 4.5 | 1.030869e+03 |
| 5 | 2.266200e+03 |
| 6 | 5.080517e+03 |
| 7 | 8.456471e+03 |
| 8 | 2.069965e+04 |
| 9 | 1.254963e+05 |
| 10 | 2.819816e+06 |

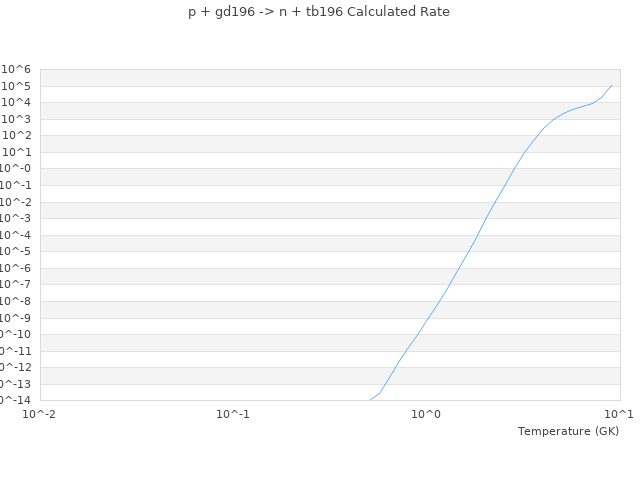

| View Graph | |
