Datapoints for gd198 -> n + gd197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.303160e-63 |
| 0.15 | 7.914146e-38 |
| 0.2 | 3.987279e-25 |
| 0.3 | 2.099029e-12 |
| 0.4 | 5.053559e-06 |
| 0.5 | 3.551046e-02 |
| 0.6 | 1.346970e+01 |
| 0.7 | 9.615905e+02 |
| 0.8 | 2.410854e+04 |
| 0.9 | 3.001278e+05 |
| 1 | 2.283569e+06 |
| 1.5 | 1.077484e+09 |
| 2 | 2.338449e+10 |
| 2.5 | 1.372545e+11 |
| 3 | 3.993993e+11 |
| 3.5 | 7.542728e+11 |
| 4 | 1.064163e+12 |
| 4.5 | 1.217718e+12 |
| 5 | 1.190594e+12 |
| 6 | 8.086305e+11 |
| 7 | 3.984432e+11 |
| 8 | 1.575358e+11 |
| 9 | 5.323880e+10 |
| 10 | 1.604748e+10 |

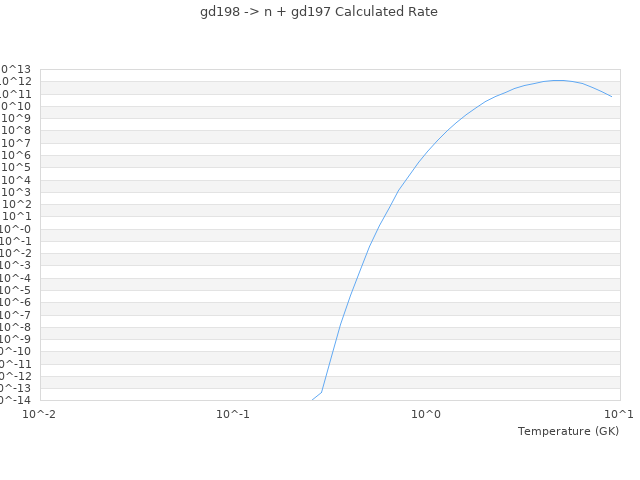

| View Graph | |
