Datapoints for n + gd197 -> gd198
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.557978e+03 |
| 0.15 | 1.685160e+03 |
| 0.2 | 1.588096e+03 |
| 0.3 | 1.310549e+03 |
| 0.4 | 1.099790e+03 |
| 0.5 | 9.561257e+02 |
| 0.6 | 8.562866e+02 |
| 0.7 | 7.839942e+02 |
| 0.8 | 7.292342e+02 |
| 0.9 | 6.858374e+02 |
| 1 | 6.499068e+02 |
| 1.5 | 5.180664e+02 |
| 2 | 4.068475e+02 |
| 2.5 | 3.021535e+02 |
| 3 | 2.107228e+02 |
| 3.5 | 1.383914e+02 |
| 4 | 8.607422e+01 |
| 4.5 | 5.101204e+01 |
| 5 | 2.897644e+01 |
| 6 | 8.403245e+00 |
| 7 | 2.175162e+00 |
| 8 | 5.165980e-01 |
| 9 | 1.150185e-01 |
| 10 | 2.441776e-02 |

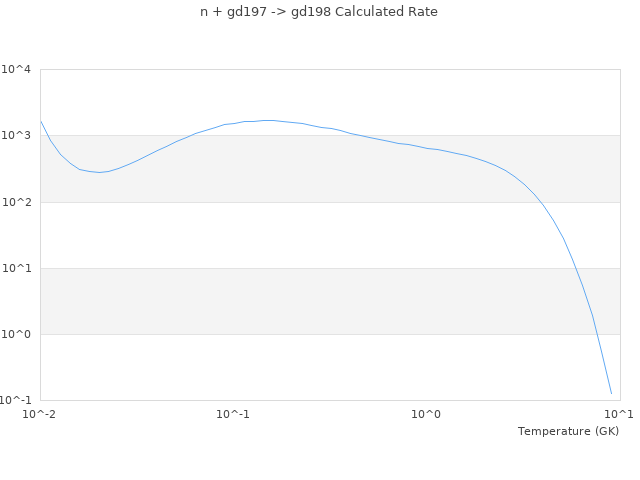

| View Graph | |
