Datapoints for tb198 -> p + gd197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 7.363341e-291 |
| 0.4 | 3.544576e-215 |
| 0.5 | 4.756673e-171 |
| 0.6 | 2.963340e-142 |
| 0.7 | 5.782718e-122 |
| 0.8 | 7.716423e-107 |
| 0.9 | 4.544151e-95 |
| 1 | 1.350899e-85 |
| 1.5 | 4.324234e-56 |
| 2 | 7.062831e-40 |
| 2.5 | 2.546406e-29 |
| 3 | 5.969937e-22 |
| 3.5 | 1.176424e-16 |
| 4 | 8.139462e-13 |
| 4.5 | 4.970754e-10 |
| 5 | 5.150595e-08 |
| 6 | 1.750153e-05 |
| 7 | 5.613999e-04 |
| 8 | 1.193729e-02 |
| 9 | 6.903636e-01 |
| 10 | 3.143989e+02 |

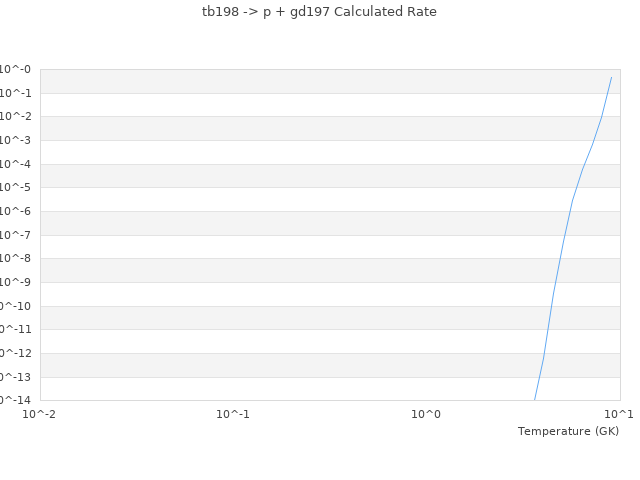

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
