Datapoints for p + gd197 -> tb198
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.211241e-132 |
| 0.15 | 8.474550e-80 |
| 0.2 | 1.408876e-54 |
| 0.3 | 1.955972e-32 |
| 0.4 | 6.616436e-24 |
| 0.5 | 4.202487e-20 |
| 0.6 | 3.257503e-18 |
| 0.7 | 3.712991e-17 |
| 0.8 | 1.812180e-16 |
| 0.9 | 6.173614e-16 |
| 1 | 1.846279e-15 |
| 1.5 | 5.261614e-13 |
| 2 | 2.257442e-10 |
| 2.5 | 5.361695e-08 |
| 3 | 4.200555e-06 |
| 3.5 | 9.791798e-05 |
| 4 | 7.480705e-04 |
| 4.5 | 2.243088e-03 |
| 5 | 3.250050e-03 |
| 6 | 1.760775e-03 |
| 7 | 5.472314e-04 |
| 8 | 3.498118e-04 |
| 9 | 1.297720e-03 |
| 10 | 6.457588e-02 |

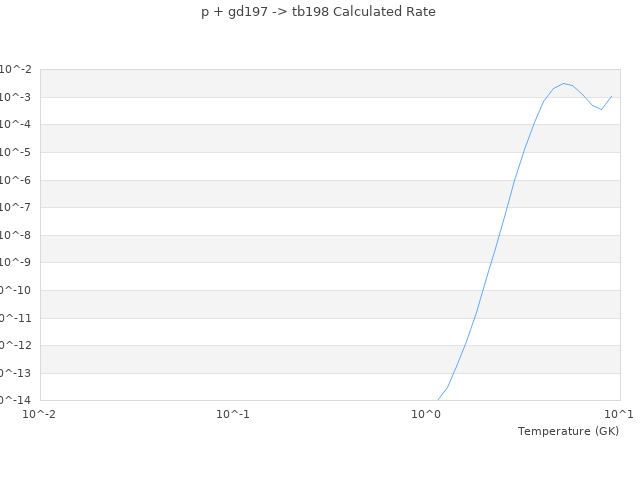

| View Graph | |
