Datapoints for p + gd197 -> n + tb197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.225832e-68 |
| 0.15 | 5.894352e-44 |
| 0.2 | 2.109706e-32 |
| 0.3 | 5.315725e-22 |
| 0.4 | 1.707172e-17 |
| 0.5 | 5.034848e-15 |
| 0.6 | 2.059309e-13 |
| 0.7 | 3.279476e-12 |
| 0.8 | 3.180559e-11 |
| 0.9 | 2.320073e-10 |
| 1 | 1.414703e-09 |
| 1.5 | 2.831822e-06 |
| 2 | 1.151583e-03 |
| 2.5 | 1.234763e-01 |
| 3 | 4.169827e+00 |
| 3.5 | 5.398126e+01 |
| 4 | 3.251139e+02 |
| 4.5 | 1.087965e+03 |
| 5 | 2.368043e+03 |
| 6 | 5.258180e+03 |
| 7 | 8.739775e+03 |
| 8 | 2.144741e+04 |
| 9 | 1.305386e+05 |
| 10 | 2.943746e+06 |

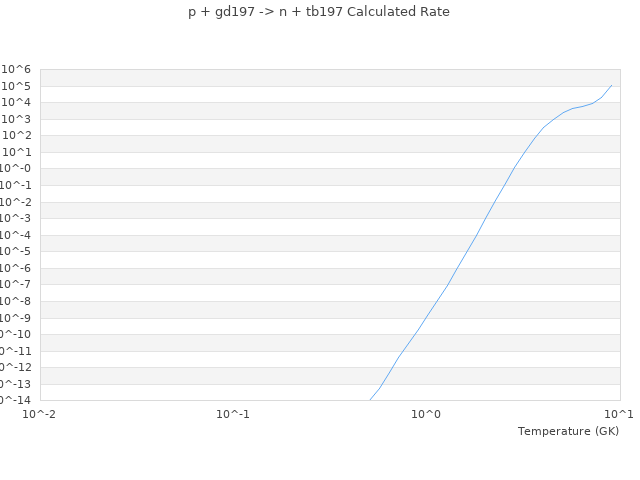

| View Graph | |
