Datapoints for p + gd197 -> he4 + eu194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.506141e-208 |
| 0.15 | 3.990390e-136 |
| 0.2 | 4.014650e-98 |
| 0.3 | 4.867107e-61 |
| 0.4 | 2.373865e-44 |
| 0.5 | 1.200704e-35 |
| 0.6 | 1.191754e-30 |
| 0.7 | 1.464403e-27 |
| 0.8 | 1.605428e-25 |
| 0.9 | 4.371262e-24 |
| 1 | 5.192635e-23 |
| 1.5 | 1.107947e-19 |
| 2 | 3.260692e-17 |
| 2.5 | 5.703850e-15 |
| 3 | 5.781787e-13 |
| 3.5 | 3.103159e-11 |
| 4 | 8.672315e-10 |
| 4.5 | 1.316318e-08 |
| 5 | 1.170911e-07 |
| 6 | 2.715345e-06 |
| 7 | 2.348532e-05 |
| 8 | 1.574122e-04 |
| 9 | 1.550872e-03 |
| 10 | 3.875074e-02 |

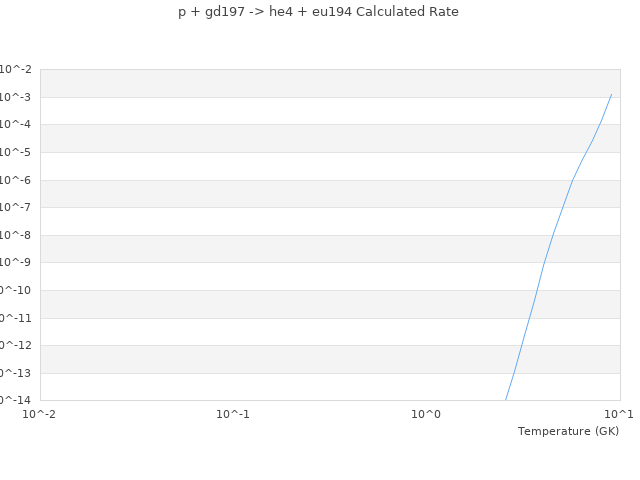

| View Graph | |
