Datapoints for gd199 -> n + gd198
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.912128e-09 |
| 0.15 | 1.053143e-02 |
| 0.2 | 1.624244e+01 |
| 0.3 | 2.823865e+04 |
| 0.4 | 1.351333e+06 |
| 0.5 | 1.543885e+07 |
| 0.6 | 8.592596e+07 |
| 0.7 | 3.154074e+08 |
| 0.8 | 8.876469e+08 |
| 0.9 | 2.081840e+09 |
| 1 | 4.277992e+09 |
| 1.5 | 4.932816e+10 |
| 2 | 2.031436e+11 |
| 2.5 | 4.825666e+11 |
| 3 | 7.995770e+11 |
| 3.5 | 1.020523e+12 |
| 4 | 1.066129e+12 |
| 4.5 | 9.497320e+11 |
| 5 | 7.430071e+11 |
| 6 | 3.349740e+11 |
| 7 | 1.109062e+11 |
| 8 | 2.931887e+10 |
| 9 | 6.563397e+09 |
| 10 | 1.299239e+09 |

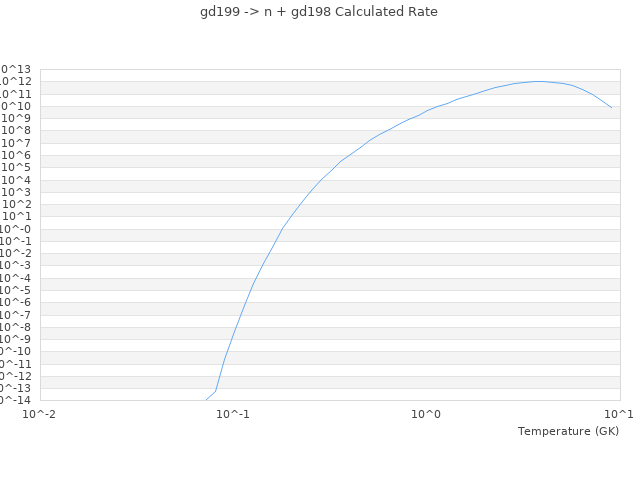

| View Graph | |
