Datapoints for p + gd198 -> tb199
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.839866e-131 |
| 0.15 | 8.528348e-79 |
| 0.2 | 1.760657e-53 |
| 0.3 | 2.942854e-31 |
| 0.4 | 1.075054e-22 |
| 0.5 | 7.139595e-19 |
| 0.6 | 5.723800e-17 |
| 0.7 | 6.721364e-16 |
| 0.8 | 3.374341e-15 |
| 0.9 | 1.181423e-14 |
| 1 | 3.628346e-14 |
| 1.5 | 1.161933e-11 |
| 2 | 5.400494e-09 |
| 2.5 | 1.336580e-06 |
| 3 | 1.053927e-04 |
| 3.5 | 2.402237e-03 |
| 4 | 1.753273e-02 |
| 4.5 | 4.932006e-02 |
| 5 | 6.612658e-02 |
| 6 | 2.987374e-02 |
| 7 | 7.619978e-03 |
| 8 | 4.006353e-03 |
| 9 | 1.241833e-02 |
| 10 | 5.299981e-01 |

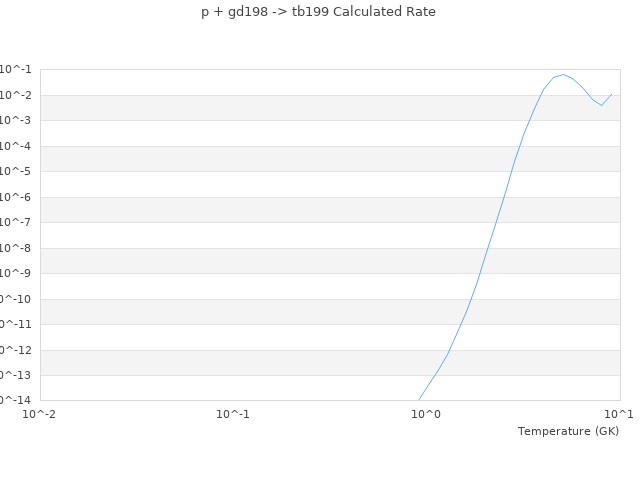

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
