Datapoints for p + gd198 -> n + tb198
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.275645e-68 |
| 0.15 | 3.299203e-44 |
| 0.2 | 1.192067e-32 |
| 0.3 | 3.160833e-22 |
| 0.4 | 1.076696e-17 |
| 0.5 | 3.355413e-15 |
| 0.6 | 1.441424e-13 |
| 0.7 | 2.396409e-12 |
| 0.8 | 2.413161e-11 |
| 0.9 | 1.819102e-10 |
| 1 | 1.141627e-09 |
| 1.5 | 2.525600e-06 |
| 2 | 1.084979e-03 |
| 2.5 | 1.199491e-01 |
| 3 | 4.118692e+00 |
| 3.5 | 5.376535e+01 |
| 4 | 3.248966e+02 |
| 4.5 | 1.087684e+03 |
| 5 | 2.364628e+03 |
| 6 | 5.230290e+03 |
| 7 | 8.669874e+03 |
| 8 | 2.128685e+04 |
| 9 | 1.301785e+05 |
| 10 | 2.963509e+06 |

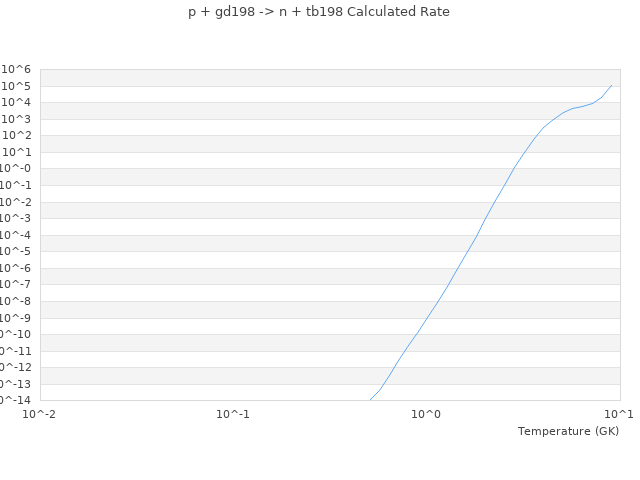

| View Graph | |
