Datapoints for p + gd199 -> n + tb199
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.586861e-68 |
| 0.15 | 8.045444e-44 |
| 0.2 | 3.059781e-32 |
| 0.3 | 7.926521e-22 |
| 0.4 | 2.517742e-17 |
| 0.5 | 7.270493e-15 |
| 0.6 | 2.905664e-13 |
| 0.7 | 4.523869e-12 |
| 0.8 | 4.295355e-11 |
| 0.9 | 3.072496e-10 |
| 1 | 1.840107e-09 |
| 1.5 | 3.432860e-06 |
| 2 | 1.329864e-03 |
| 2.5 | 1.375896e-01 |
| 3 | 4.520200e+00 |
| 3.5 | 5.725167e+01 |
| 4 | 3.388017e+02 |
| 4.5 | 1.117870e+03 |
| 5 | 2.406117e+03 |
| 6 | 5.265428e+03 |
| 7 | 8.706671e+03 |
| 8 | 2.144620e+04 |
| 9 | 1.321736e+05 |
| 10 | 3.044693e+06 |

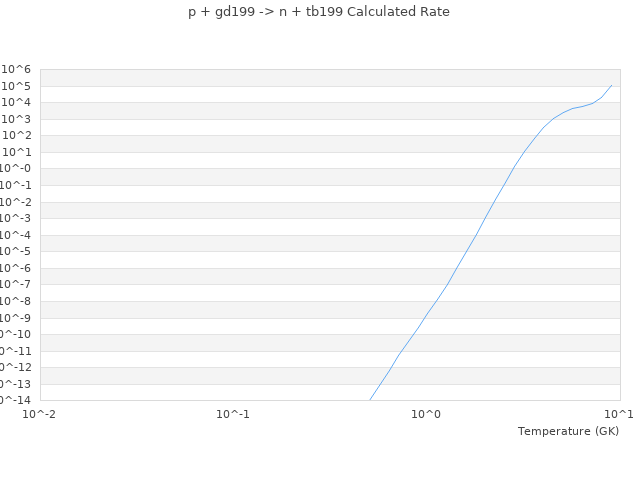

| View Graph | |
