Datapoints for gd202 -> n + gd201
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.136718e-57 |
| 0.15 | 9.665909e-34 |
| 0.2 | 4.272244e-22 |
| 0.3 | 1.937703e-10 |
| 0.4 | 1.350932e-04 |
| 0.5 | 4.480126e-01 |
| 0.6 | 1.026058e+02 |
| 0.7 | 5.097781e+03 |
| 0.8 | 9.728876e+04 |
| 0.9 | 9.792404e+05 |
| 1 | 6.286197e+06 |
| 1.5 | 1.792781e+09 |
| 2 | 3.065623e+10 |
| 2.5 | 1.579258e+11 |
| 3 | 4.255044e+11 |
| 3.5 | 7.662393e+11 |
| 4 | 1.048505e+12 |
| 4.5 | 1.175335e+12 |
| 5 | 1.132104e+12 |
| 6 | 7.513210e+11 |
| 7 | 3.614573e+11 |
| 8 | 1.385127e+11 |
| 9 | 4.487637e+10 |
| 10 | 1.280142e+10 |

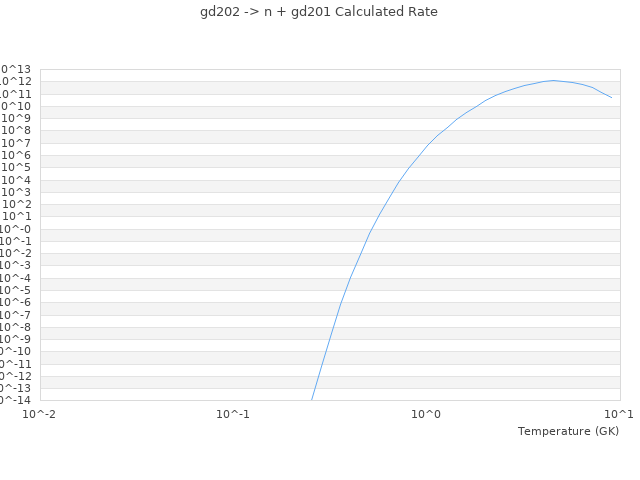

| View Graph | |
