Datapoints for n + gd204 -> gd205
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.779917e-12 |
| 0.15 | 1.172065e-08 |
| 0.2 | 7.810151e-07 |
| 0.3 | 5.752731e-05 |
| 0.4 | 6.127632e-04 |
| 0.5 | 2.992275e-03 |
| 0.6 | 9.645603e-03 |
| 0.7 | 2.401099e-02 |
| 0.8 | 5.007490e-02 |
| 0.9 | 9.178113e-02 |
| 1 | 1.524523e-01 |
| 1.5 | 7.720979e-01 |
| 2 | 1.694857e+00 |
| 2.5 | 2.431232e+00 |
| 3 | 2.701538e+00 |
| 3.5 | 2.528610e+00 |
| 4 | 2.086762e+00 |
| 4.5 | 1.559282e+00 |
| 5 | 1.072161e+00 |
| 6 | 4.098530e-01 |
| 7 | 1.219374e-01 |
| 8 | 2.877295e-02 |
| 9 | 5.425920e-03 |
| 10 | 8.197609e-04 |

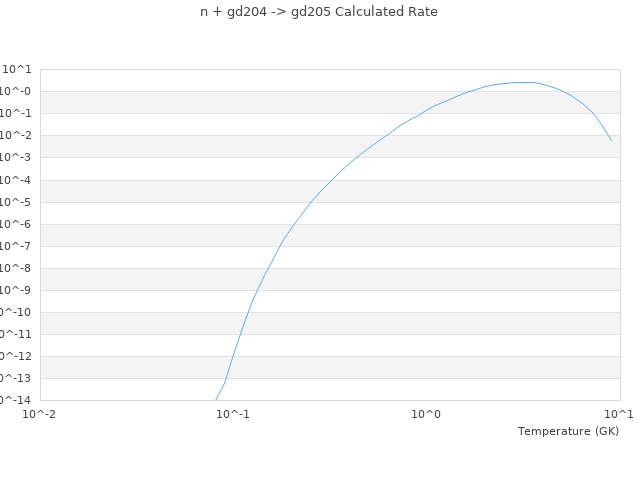

| View Graph | |
