Datapoints for n + gd205 -> gd206
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.447577e+02 |
| 0.15 | 8.395957e+02 |
| 0.2 | 8.020665e+02 |
| 0.3 | 6.609178e+02 |
| 0.4 | 5.478323e+02 |
| 0.5 | 4.700415e+02 |
| 0.6 | 4.162700e+02 |
| 0.7 | 3.778983e+02 |
| 0.8 | 3.494875e+02 |
| 0.9 | 3.276484e+02 |
| 1 | 3.102216e+02 |
| 1.5 | 2.528688e+02 |
| 2 | 2.087775e+02 |
| 2.5 | 1.652337e+02 |
| 3 | 1.234669e+02 |
| 3.5 | 8.691862e+01 |
| 4 | 5.778948e+01 |
| 4.5 | 3.643257e+01 |
| 5 | 2.187360e+01 |
| 6 | 6.923875e+00 |
| 7 | 1.888541e+00 |
| 8 | 4.548798e-01 |
| 9 | 9.868691e-02 |
| 10 | 1.959695e-02 |

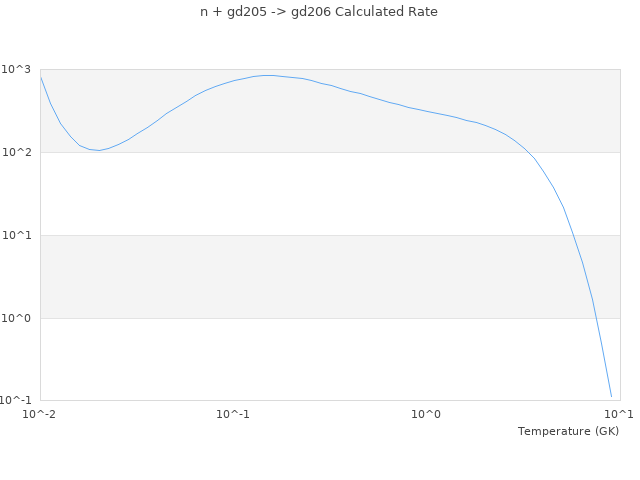

| View Graph | |
