Datapoints for n + gd206 -> gd207
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.159590e-16 |
| 0.15 | 5.441759e-11 |
| 0.2 | 1.265546e-08 |
| 0.3 | 2.993234e-06 |
| 0.4 | 5.600921e-05 |
| 0.5 | 3.832809e-04 |
| 0.6 | 1.549552e-03 |
| 0.7 | 4.539667e-03 |
| 0.8 | 1.070315e-02 |
| 0.9 | 2.158460e-02 |
| 1 | 3.869962e-02 |
| 1.5 | 2.465237e-01 |
| 2 | 6.114012e-01 |
| 2.5 | 9.583138e-01 |
| 3 | 1.151273e+00 |
| 3.5 | 1.161301e+00 |
| 4 | 1.031321e+00 |
| 4.5 | 8.276300e-01 |
| 5 | 6.090851e-01 |
| 6 | 2.621714e-01 |
| 7 | 8.486416e-02 |
| 8 | 2.080061e-02 |
| 9 | 3.851784e-03 |
| 10 | 5.359444e-04 |

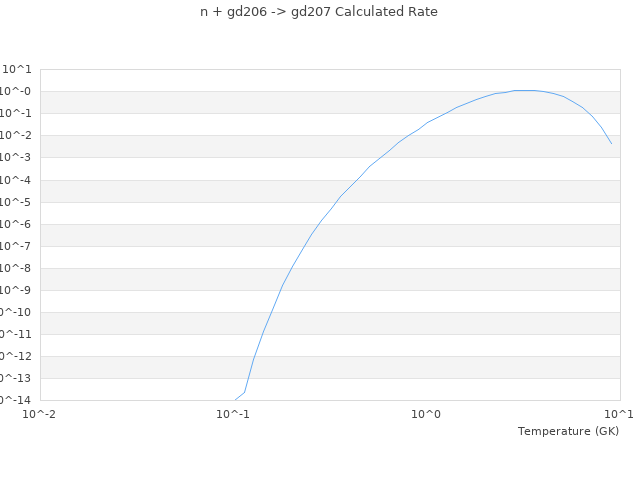

| View Graph | |
