Datapoints for tb207 -> p + gd206
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | INFe-316 |
| 0.4 | 3.002757e-234 |
| 0.5 | 2.738544e-186 |
| 0.6 | 5.819747e-155 |
| 0.7 | 7.116878e-133 |
| 0.8 | 2.082940e-116 |
| 0.9 | 1.343747e-103 |
| 1 | 2.701340e-93 |
| 1.5 | 2.688613e-61 |
| 2 | 8.005461e-44 |
| 2.5 | 1.685523e-32 |
| 3 | 1.288937e-24 |
| 3.5 | 5.869311e-19 |
| 4 | 7.498148e-15 |
| 4.5 | 7.235495e-12 |
| 5 | 1.057950e-09 |
| 6 | 5.663143e-07 |
| 7 | 2.332621e-05 |
| 8 | 5.626962e-04 |
| 9 | 3.431737e-02 |
| 10 | 1.585921e+01 |

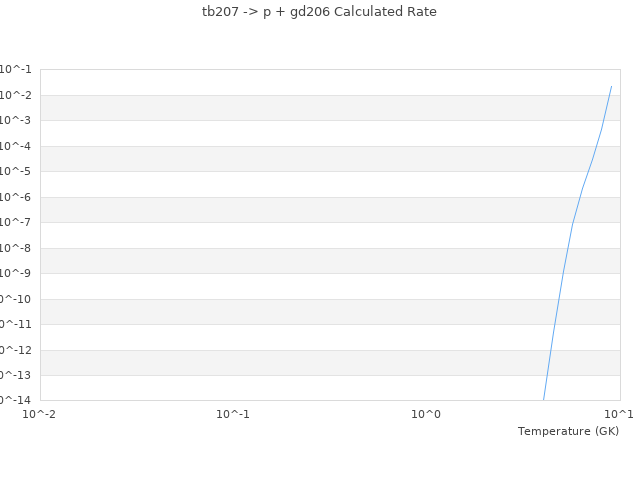

| View Graph | |
