Datapoints for p + gd206 -> n + tb206
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.184899e-68 |
| 0.15 | 5.272094e-44 |
| 0.2 | 2.334543e-32 |
| 0.3 | 6.836066e-22 |
| 0.4 | 2.272547e-17 |
| 0.5 | 6.702691e-15 |
| 0.6 | 2.709794e-13 |
| 0.7 | 4.249393e-12 |
| 0.8 | 4.055210e-11 |
| 0.9 | 2.912101e-10 |
| 1 | 1.749733e-09 |
| 1.5 | 3.303163e-06 |
| 2 | 1.289755e-03 |
| 2.5 | 1.341179e-01 |
| 3 | 4.419497e+00 |
| 3.5 | 5.607646e+01 |
| 4 | 3.322833e+02 |
| 4.5 | 1.098018e+03 |
| 5 | 2.368782e+03 |
| 6 | 5.229347e+03 |
| 7 | 8.793752e+03 |
| 8 | 2.225626e+04 |
| 9 | 1.426278e+05 |
| 10 | 3.461474e+06 |

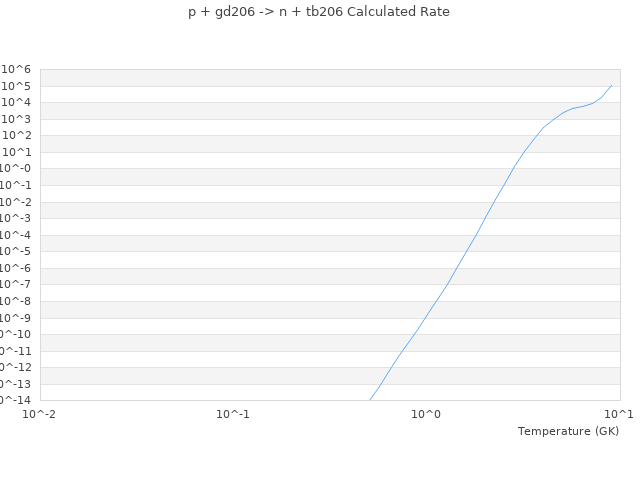

| View Graph | |
