Datapoints for n + gd208 -> gd209
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.009884e-17 |
| 0.15 | 1.008068e-11 |
| 0.2 | 4.048319e-09 |
| 0.3 | 1.704647e-06 |
| 0.4 | 4.440691e-05 |
| 0.5 | 3.803987e-04 |
| 0.6 | 1.811661e-03 |
| 0.7 | 6.009367e-03 |
| 0.8 | 1.560211e-02 |
| 0.9 | 3.395078e-02 |
| 1 | 6.468370e-02 |
| 1.5 | 4.886994e-01 |
| 2 | 1.299166e+00 |
| 2.5 | 2.113509e+00 |
| 3 | 2.614617e+00 |
| 3.5 | 2.718787e+00 |
| 4 | 2.498654e+00 |
| 4.5 | 2.083413e+00 |
| 5 | 1.597890e+00 |
| 6 | 7.491309e-01 |
| 7 | 2.622510e-01 |
| 8 | 6.819447e-02 |
| 9 | 1.300774e-02 |
| 10 | 1.794784e-03 |

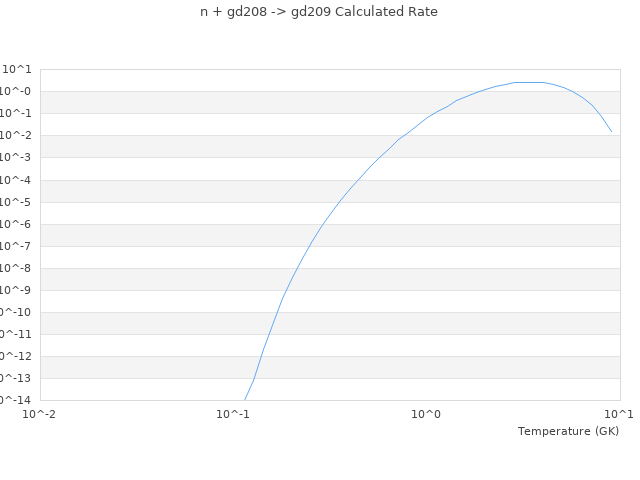

| View Graph | |
