Datapoints for p + gd209 -> n + tb209
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.544840e-68 |
| 0.15 | 8.529169e-44 |
| 0.2 | 4.093114e-32 |
| 0.3 | 1.235591e-21 |
| 0.4 | 4.002981e-17 |
| 0.5 | 1.133073e-14 |
| 0.6 | 4.382007e-13 |
| 0.7 | 6.579988e-12 |
| 0.8 | 6.028079e-11 |
| 0.9 | 4.168333e-10 |
| 1 | 2.419181e-09 |
| 1.5 | 3.999476e-06 |
| 2 | 1.437527e-03 |
| 2.5 | 1.420589e-01 |
| 3 | 4.542463e+00 |
| 3.5 | 5.671618e+01 |
| 4 | 3.338416e+02 |
| 4.5 | 1.102771e+03 |
| 5 | 2.387885e+03 |
| 6 | 5.343012e+03 |
| 7 | 9.117342e+03 |
| 8 | 2.331589e+04 |
| 9 | 1.498146e+05 |
| 10 | 3.609142e+06 |

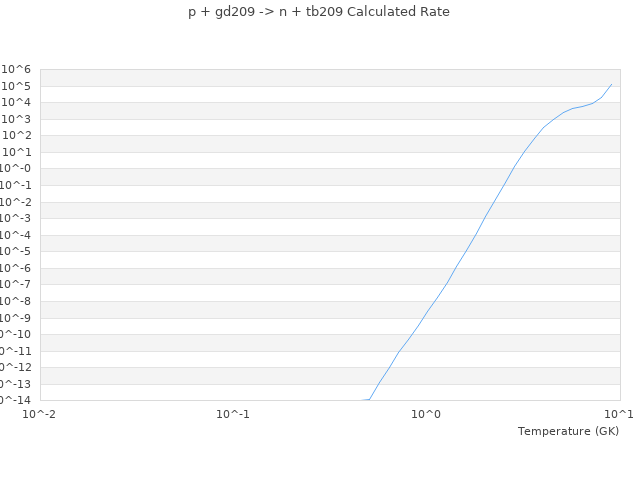

| View Graph | |
