Datapoints for p + gd214 -> n + tb214
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.196921e-67 |
| 0.15 | 2.349243e-42 |
| 0.2 | 1.160095e-30 |
| 0.3 | 2.296439e-20 |
| 0.4 | 4.473006e-16 |
| 0.5 | 8.076114e-14 |
| 0.6 | 2.150792e-12 |
| 0.7 | 2.382745e-11 |
| 0.8 | 1.705604e-10 |
| 0.9 | 9.655565e-10 |
| 1 | 4.764298e-09 |
| 1.5 | 5.014531e-06 |
| 2 | 1.554751e-03 |
| 2.5 | 1.487543e-01 |
| 3 | 4.798262e+00 |
| 3.5 | 6.102518e+01 |
| 4 | 3.646775e+02 |
| 4.5 | 1.213321e+03 |
| 5 | 2.623837e+03 |
| 6 | 5.745570e+03 |
| 7 | 9.515478e+03 |
| 8 | 2.393708e+04 |
| 9 | 1.564409e+05 |
| 10 | 4.032583e+06 |

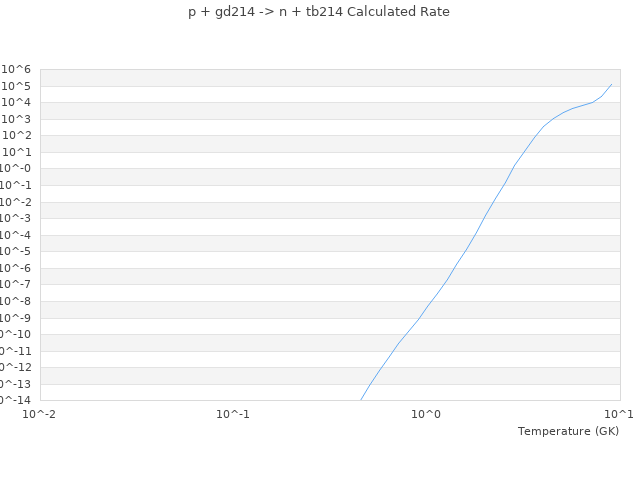

| View Graph | |
