Datapoints for he4 + eu211 -> p + gd214
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-309 |
| 0.3 | 1.994232e-204 |
| 0.4 | 8.662617e-153 |
| 0.5 | 1.015463e-122 |
| 0.6 | 2.413834e-103 |
| 0.7 | 5.849979e-90 |
| 0.8 | 3.186662e-80 |
| 0.9 | 7.570997e-73 |
| 1 | 4.518572e-67 |
| 1.5 | 3.394437e-50 |
| 2 | 1.678912e-41 |
| 2.5 | 9.868238e-36 |
| 3 | 2.191769e-31 |
| 3.5 | 6.790974e-28 |
| 4 | 5.367659e-25 |
| 4.5 | 1.504853e-22 |
| 5 | 1.840723e-20 |
| 6 | 3.955178e-17 |
| 7 | 1.214509e-14 |
| 8 | 9.438774e-13 |
| 9 | 2.880278e-11 |
| 10 | 4.916257e-10 |

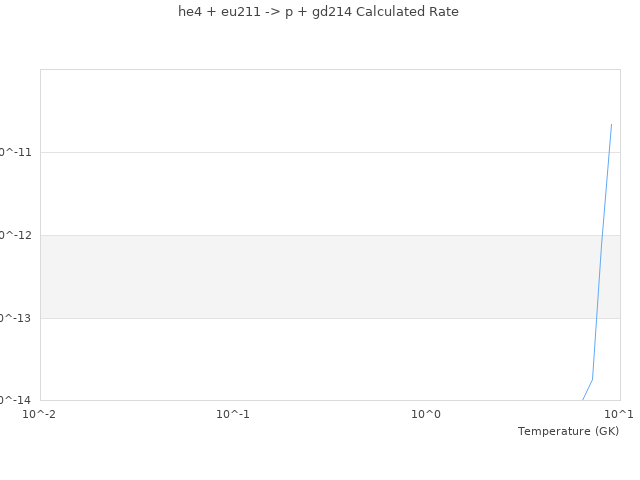

| View Graph | |
