Datapoints for n + dy217 -> he4 + gd214
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | INFe-317 |
| 0.4 | 1.580722e-238 |
| 0.5 | 1.660415e-190 |
| 0.6 | 2.398677e-158 |
| 0.7 | 2.275782e-135 |
| 0.8 | 3.581201e-118 |
| 0.9 | 7.679101e-105 |
| 1 | 3.234552e-94 |
| 1.5 | 1.241469e-62 |
| 2 | 5.978542e-47 |
| 2.5 | 1.926836e-37 |
| 3 | 6.008446e-31 |
| 3.5 | 3.727522e-26 |
| 4 | 1.995000e-22 |
| 4.5 | 2.038275e-19 |
| 5 | 6.343366e-17 |
| 6 | 5.095102e-13 |
| 7 | 4.127996e-10 |
| 8 | 6.848708e-08 |
| 9 | 3.526282e-06 |
| 10 | 7.385843e-05 |

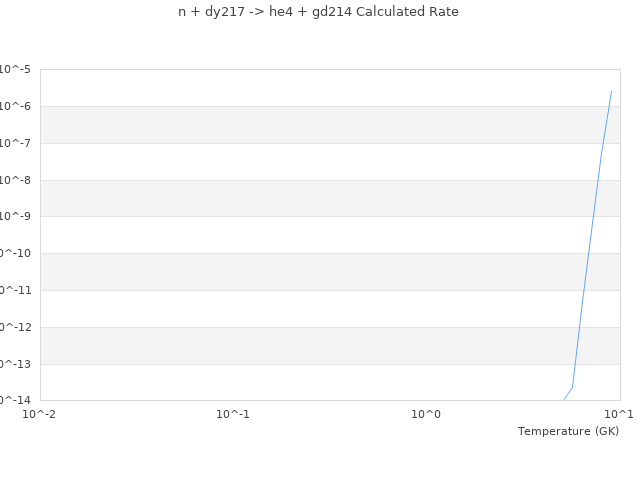

| View Graph | |
