Datapoints for he4 + gd133 -> p + tb136
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 4.547677e-223 |
| 0.2 | 2.267585e-162 |
| 0.3 | 1.033516e-104 |
| 0.4 | 2.171678e-78 |
| 0.5 | 6.733198e-64 |
| 0.6 | 7.000550e-55 |
| 0.7 | 9.794805e-49 |
| 0.8 | 3.114799e-44 |
| 0.9 | 9.771874e-41 |
| 1 | 6.855246e-38 |
| 1.5 | 2.650839e-28 |
| 2 | 5.206283e-22 |
| 2.5 | 2.660580e-17 |
| 3 | 1.051949e-13 |
| 3.5 | 5.621527e-11 |
| 4 | 6.106382e-09 |
| 4.5 | 1.894920e-07 |
| 5 | 2.256203e-06 |
| 6 | 4.922012e-05 |
| 7 | 3.525278e-04 |
| 8 | 3.148871e-03 |
| 9 | 9.998163e-02 |
| 10 | 2.588981e+01 |

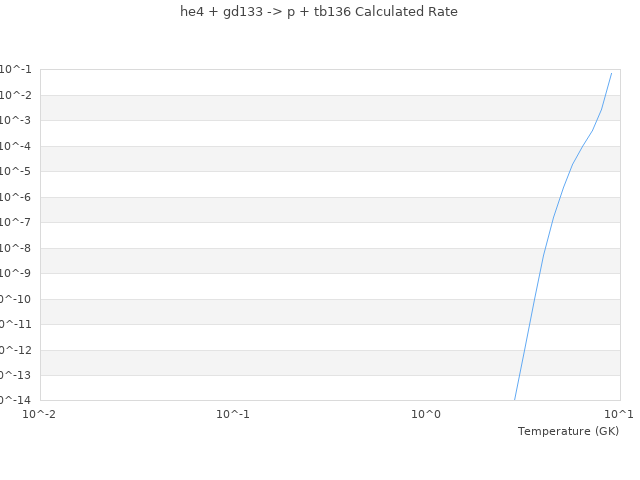

| View Graph | |
