Datapoints for p + tb136 -> he4 + gd133
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.964482e-121 |
| 0.15 | 7.030463e-73 |
| 0.2 | 1.780100e-49 |
| 0.3 | 4.119880e-29 |
| 0.4 | 1.950769e-21 |
| 0.5 | 3.920466e-18 |
| 0.6 | 1.417052e-16 |
| 0.7 | 9.321597e-16 |
| 0.8 | 2.992990e-15 |
| 0.9 | 7.324764e-15 |
| 1 | 1.677070e-14 |
| 1.5 | 2.254493e-12 |
| 2 | 8.255852e-10 |
| 2.5 | 2.440910e-07 |
| 3 | 3.110267e-05 |
| 3.5 | 1.429240e-03 |
| 4 | 2.465307e-02 |
| 4.5 | 1.828547e-01 |
| 5 | 6.928446e-01 |
| 6 | 2.713402e+00 |
| 7 | 5.698872e+00 |
| 8 | 2.028469e+01 |
| 9 | 3.148820e+02 |
| 10 | 4.599681e+04 |

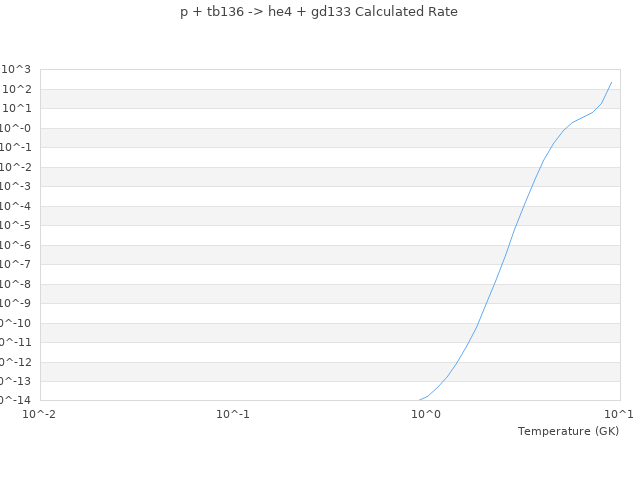

| View Graph | |
