Datapoints for he4 + gd167 -> p + tb170
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-309 |
| 0.3 | 3.486602e-201 |
| 0.4 | 7.373149e-150 |
| 0.5 | 1.423775e-120 |
| 0.6 | 7.290524e-102 |
| 0.7 | 6.383243e-89 |
| 0.8 | 2.054940e-79 |
| 0.9 | 4.324345e-72 |
| 1 | 3.127765e-66 |
| 1.5 | 6.885528e-48 |
| 2 | 2.399066e-37 |
| 2.5 | 4.520874e-30 |
| 3 | 1.031361e-24 |
| 3.5 | 1.118676e-20 |
| 4 | 1.273175e-17 |
| 4.5 | 2.622236e-15 |
| 5 | 1.480084e-13 |
| 6 | 3.496107e-11 |
| 7 | 1.347068e-09 |
| 8 | 3.925771e-08 |
| 9 | 2.798129e-06 |
| 10 | 1.222627e-03 |

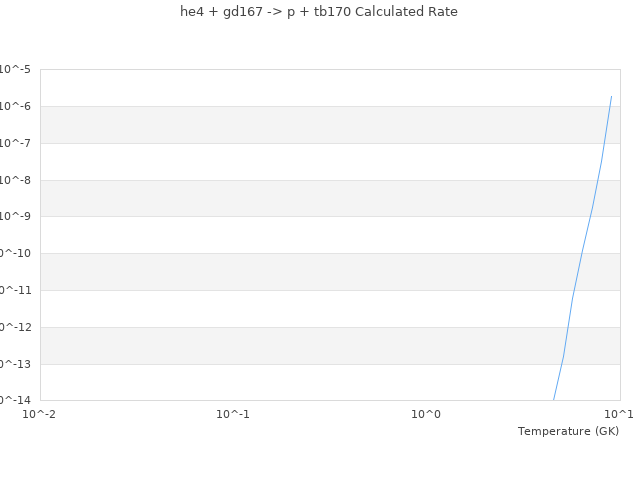

| View Graph | |
