Datapoints for he4 + gd170 -> p + tb173
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-313 |
| 0.3 | 2.875102e-204 |
| 0.4 | 2.508412e-152 |
| 0.5 | 1.164214e-122 |
| 0.6 | 1.085255e-103 |
| 0.7 | 1.471060e-90 |
| 0.8 | 6.616241e-81 |
| 0.9 | 1.815404e-73 |
| 1 | 1.631009e-67 |
| 1.5 | 7.213966e-49 |
| 2 | 3.808116e-38 |
| 2.5 | 9.777235e-31 |
| 3 | 2.888134e-25 |
| 3.5 | 3.936715e-21 |
| 4 | 5.512345e-18 |
| 4.5 | 1.372529e-15 |
| 5 | 9.215624e-14 |
| 6 | 2.937121e-11 |
| 7 | 1.430024e-09 |
| 8 | 4.913153e-08 |
| 9 | 3.837498e-06 |
| 10 | 1.702726e-03 |

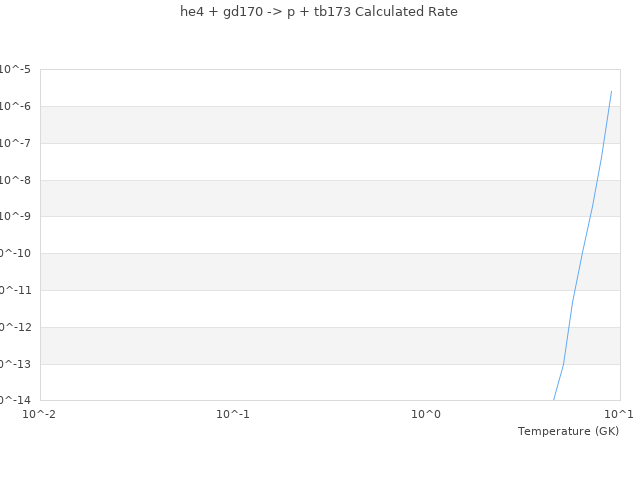

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
