Datapoints for p + tb173 -> he4 + gd170
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.316000e-169 |
| 0.15 | 5.987578e-106 |
| 0.2 | 4.943990e-74 |
| 0.3 | 1.010828e-44 |
| 0.4 | 1.136728e-32 |
| 0.5 | 6.143710e-27 |
| 0.6 | 6.339031e-24 |
| 0.7 | 3.443860e-22 |
| 0.8 | 4.387522e-21 |
| 0.9 | 2.705745e-20 |
| 1 | 1.167171e-19 |
| 1.5 | 5.714071e-17 |
| 2 | 3.173426e-14 |
| 2.5 | 1.331258e-11 |
| 3 | 2.532108e-09 |
| 3.5 | 1.813776e-07 |
| 4 | 4.957067e-06 |
| 4.5 | 5.777648e-05 |
| 5 | 3.349863e-04 |
| 6 | 2.709153e-03 |
| 7 | 9.561972e-03 |
| 8 | 4.589694e-02 |
| 9 | 7.756078e-01 |
| 10 | 1.011288e+02 |

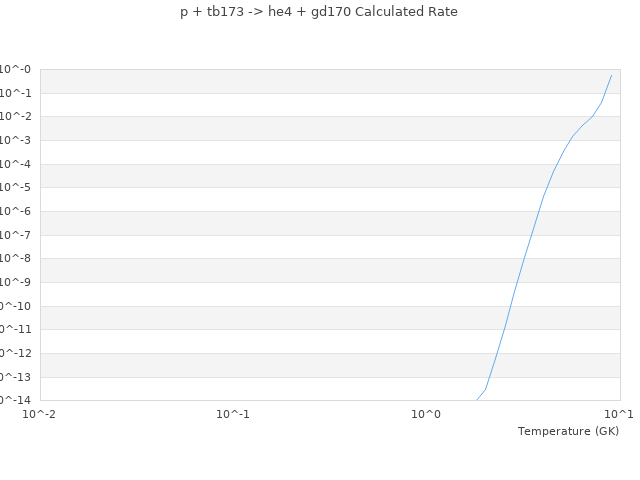

| View Graph | |
