Datapoints for p + tb174 -> he4 + gd171
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.202969e-169 |
| 0.15 | 1.034841e-105 |
| 0.2 | 1.046675e-73 |
| 0.3 | 2.243077e-44 |
| 0.4 | 2.334289e-32 |
| 0.5 | 1.151496e-26 |
| 0.6 | 1.096364e-23 |
| 0.7 | 5.581819e-22 |
| 0.8 | 6.761210e-21 |
| 0.9 | 4.012879e-20 |
| 1 | 1.682436e-19 |
| 1.5 | 7.790632e-17 |
| 2 | 4.324806e-14 |
| 2.5 | 1.817949e-11 |
| 3 | 3.419155e-09 |
| 3.5 | 2.383510e-07 |
| 4 | 6.252498e-06 |
| 4.5 | 6.924842e-05 |
| 5 | 3.792799e-04 |
| 6 | 2.732522e-03 |
| 7 | 8.773173e-03 |
| 8 | 4.002297e-02 |
| 9 | 6.838378e-01 |
| 10 | 9.727350e+01 |

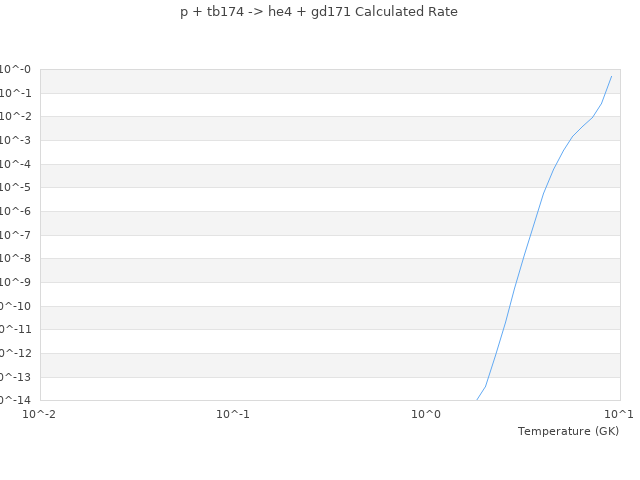

| View Graph | |
