Datapoints for he4 + gd172 -> p + tb175
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 4.290496e-213 |
| 0.4 | 3.888817e-158 |
| 0.5 | 1.333804e-126 |
| 0.6 | 2.067581e-106 |
| 0.7 | 1.861032e-92 |
| 0.8 | 3.055966e-82 |
| 0.9 | 2.040941e-74 |
| 1 | 3.364160e-68 |
| 1.5 | 3.755398e-49 |
| 2 | 1.487015e-38 |
| 2.5 | 2.490504e-31 |
| 3 | 5.460977e-26 |
| 3.5 | 6.612340e-22 |
| 4 | 9.670312e-19 |
| 4.5 | 2.845752e-16 |
| 5 | 2.449475e-14 |
| 6 | 1.398004e-11 |
| 7 | 1.093420e-09 |
| 8 | 4.374754e-08 |
| 9 | 2.453291e-06 |
| 10 | 4.258498e-04 |

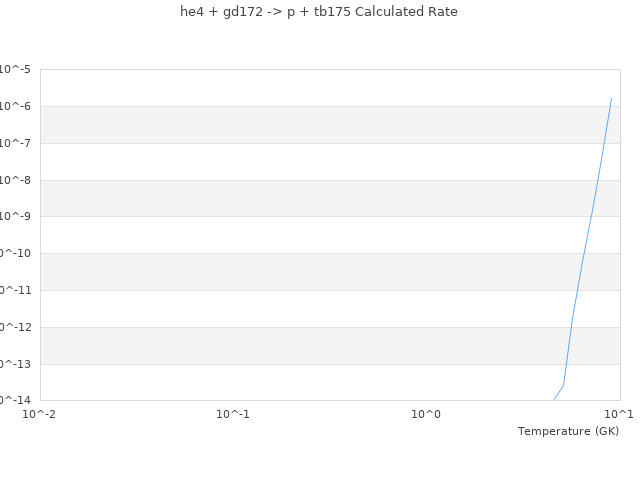

| View Graph | |
