Datapoints for p + tb175 -> he4 + gd172
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.076569e-188 |
| 0.15 | 6.899629e-120 |
| 0.2 | 1.263733e-84 |
| 0.3 | 3.809863e-51 |
| 0.4 | 1.116499e-36 |
| 0.5 | 1.944986e-29 |
| 0.6 | 1.919299e-25 |
| 0.7 | 4.664010e-23 |
| 0.8 | 1.613051e-21 |
| 0.9 | 1.922811e-20 |
| 1 | 1.265518e-19 |
| 1.5 | 8.992970e-17 |
| 2 | 2.841125e-14 |
| 2.5 | 6.585958e-12 |
| 3 | 8.324787e-10 |
| 3.5 | 4.894666e-08 |
| 4 | 1.316762e-06 |
| 4.5 | 1.732148e-05 |
| 5 | 1.240846e-04 |
| 6 | 1.700353e-03 |
| 7 | 9.267232e-03 |
| 8 | 5.028822e-02 |
| 9 | 5.962416e-01 |
| 10 | 2.985782e+01 |

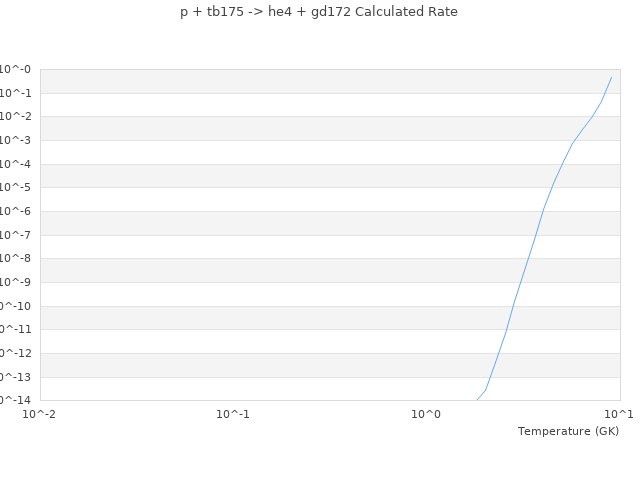

| View Graph | |
