Datapoints for p + tb177 -> he4 + gd174
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.253639e-189 |
| 0.15 | 9.489601e-121 |
| 0.2 | 2.395330e-85 |
| 0.3 | 9.794455e-52 |
| 0.4 | 3.294141e-37 |
| 0.5 | 6.196207e-30 |
| 0.6 | 6.428872e-26 |
| 0.7 | 1.621443e-23 |
| 0.8 | 5.780238e-22 |
| 0.9 | 7.074061e-21 |
| 1 | 4.768310e-20 |
| 1.5 | 3.746392e-17 |
| 2 | 1.282695e-14 |
| 2.5 | 3.168354e-12 |
| 3 | 4.203648e-10 |
| 3.5 | 2.561265e-08 |
| 4 | 7.066237e-07 |
| 4.5 | 9.455156e-06 |
| 5 | 6.847781e-05 |
| 6 | 9.483841e-04 |
| 7 | 5.196857e-03 |
| 8 | 2.847048e-02 |
| 9 | 3.446867e-01 |
| 10 | 1.792790e+01 |

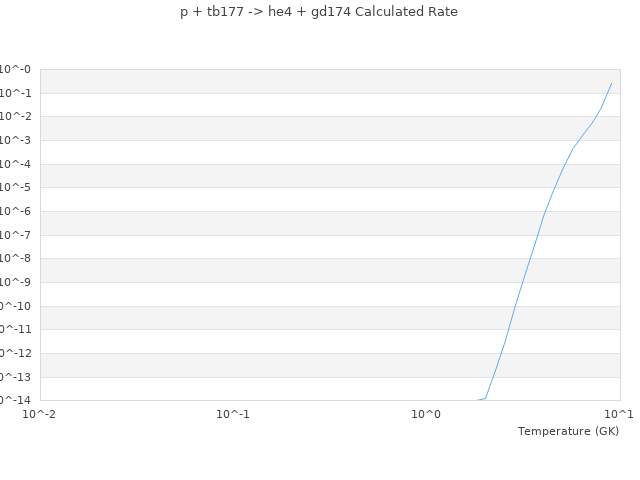

| View Graph | |
