Datapoints for p + tb178 -> he4 + gd175
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.006538e-189 |
| 0.15 | 6.555987e-121 |
| 0.2 | 1.972981e-85 |
| 0.3 | 8.966850e-52 |
| 0.4 | 3.047321e-37 |
| 0.5 | 5.678371e-30 |
| 0.6 | 5.830259e-26 |
| 0.7 | 1.460483e-23 |
| 0.8 | 5.193545e-22 |
| 0.9 | 6.364565e-21 |
| 1 | 4.308804e-20 |
| 1.5 | 3.535555e-17 |
| 2 | 1.265687e-14 |
| 2.5 | 3.213861e-12 |
| 3 | 4.299387e-10 |
| 3.5 | 2.597541e-08 |
| 4 | 7.016428e-07 |
| 4.5 | 9.114238e-06 |
| 5 | 6.378424e-05 |
| 6 | 8.244488e-04 |
| 7 | 4.291615e-03 |
| 8 | 2.312963e-02 |
| 9 | 2.890616e-01 |
| 10 | 1.644978e+01 |

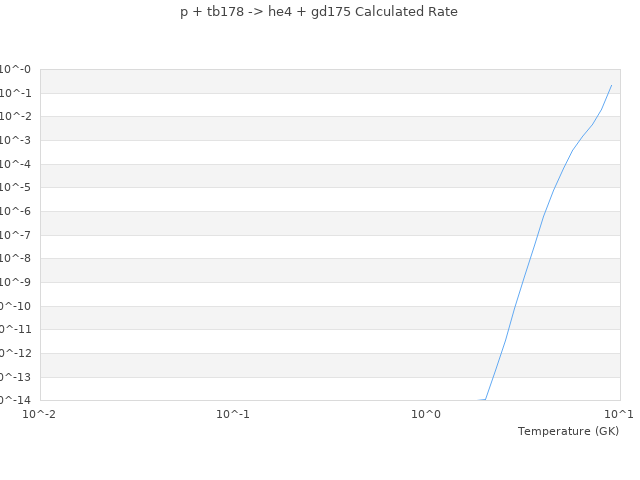

| View Graph | |
