Datapoints for p + tb180 -> he4 + gd177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.235679e-190 |
| 0.15 | 1.937352e-121 |
| 0.2 | 8.431718e-86 |
| 0.3 | 4.791872e-52 |
| 0.4 | 1.634206e-37 |
| 0.5 | 2.886707e-30 |
| 0.6 | 2.779426e-26 |
| 0.7 | 6.554381e-24 |
| 0.8 | 2.212500e-22 |
| 0.9 | 2.597371e-21 |
| 1 | 1.699013e-20 |
| 1.5 | 1.290071e-17 |
| 2 | 4.657551e-15 |
| 2.5 | 1.231097e-12 |
| 3 | 1.728196e-10 |
| 3.5 | 1.093439e-08 |
| 4 | 3.074920e-07 |
| 4.5 | 4.129935e-06 |
| 5 | 2.969251e-05 |
| 6 | 3.991591e-04 |
| 7 | 2.139298e-03 |
| 8 | 1.188503e-02 |
| 9 | 1.548362e-01 |
| 10 | 9.368592e+00 |

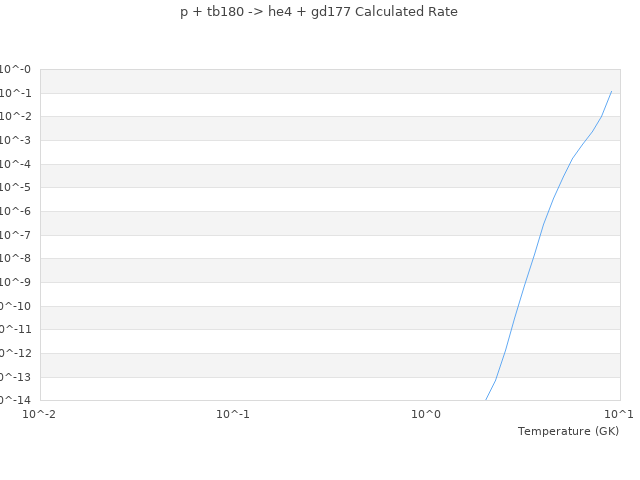

| View Graph | |
