Datapoints for p + tb183 -> he4 + gd180
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.177514e-192 |
| 0.15 | 3.431439e-123 |
| 0.2 | 2.280168e-87 |
| 0.3 | 2.233819e-53 |
| 0.4 | 1.061835e-38 |
| 0.5 | 2.335448e-31 |
| 0.6 | 2.618669e-27 |
| 0.7 | 6.892270e-25 |
| 0.8 | 2.524394e-23 |
| 0.9 | 3.153867e-22 |
| 1 | 2.165957e-21 |
| 1.5 | 1.897182e-18 |
| 2 | 7.477329e-16 |
| 2.5 | 2.149371e-13 |
| 3 | 3.304323e-11 |
| 3.5 | 2.305684e-09 |
| 4 | 7.179075e-08 |
| 4.5 | 1.067806e-06 |
| 5 | 8.472570e-06 |
| 6 | 1.355631e-04 |
| 7 | 8.242369e-04 |
| 8 | 4.872771e-03 |
| 9 | 6.261860e-02 |
| 10 | 3.433832e+00 |

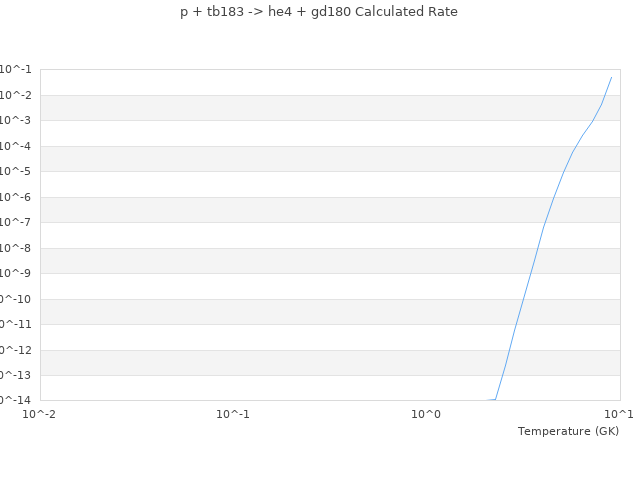

| View Graph | |
