Datapoints for he4 + gd184 -> p + tb187
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 8.544694e-212 |
| 0.4 | 2.581386e-157 |
| 0.5 | 6.696998e-126 |
| 0.6 | 9.650734e-106 |
| 0.7 | 8.283702e-92 |
| 0.8 | 1.261505e-81 |
| 0.9 | 7.513048e-74 |
| 1 | 1.064903e-67 |
| 1.5 | 4.149501e-49 |
| 2 | 5.523694e-39 |
| 2.5 | 3.918500e-32 |
| 3 | 4.821654e-27 |
| 3.5 | 4.235950e-23 |
| 4 | 5.544635e-20 |
| 4.5 | 1.712027e-17 |
| 5 | 1.727251e-15 |
| 6 | 1.594761e-12 |
| 7 | 1.989449e-10 |
| 8 | 1.004752e-08 |
| 9 | 4.760432e-07 |
| 10 | 4.107656e-05 |

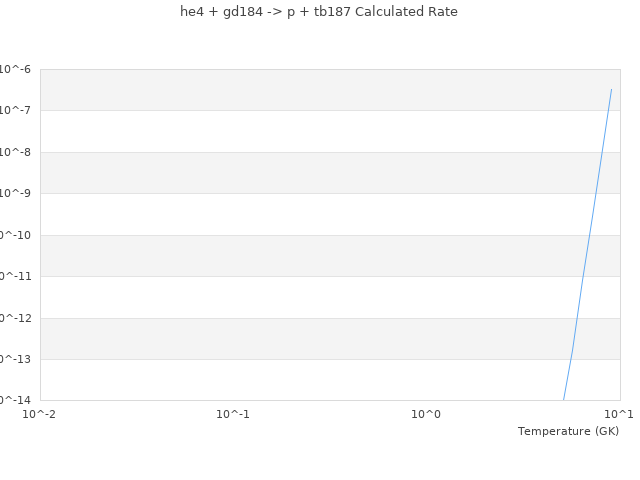

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
