Datapoints for p + tb187 -> he4 + gd184
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.089562e-206 |
| 0.15 | 3.500096e-135 |
| 0.2 | 1.626487e-97 |
| 0.3 | 1.044609e-60 |
| 0.4 | 4.219195e-44 |
| 0.5 | 2.065041e-35 |
| 0.6 | 2.108904e-30 |
| 0.7 | 2.732827e-27 |
| 0.8 | 3.187463e-25 |
| 0.9 | 9.248236e-24 |
| 1 | 1.168697e-22 |
| 1.5 | 3.227274e-19 |
| 2 | 1.143651e-16 |
| 2.5 | 2.313759e-14 |
| 3 | 2.657564e-12 |
| 3.5 | 1.599620e-10 |
| 4 | 4.986234e-09 |
| 4.5 | 8.412939e-08 |
| 5 | 8.295113e-07 |
| 6 | 2.339954e-05 |
| 7 | 2.416204e-04 |
| 8 | 1.883114e-03 |
| 9 | 2.085608e-02 |
| 10 | 5.625943e-01 |

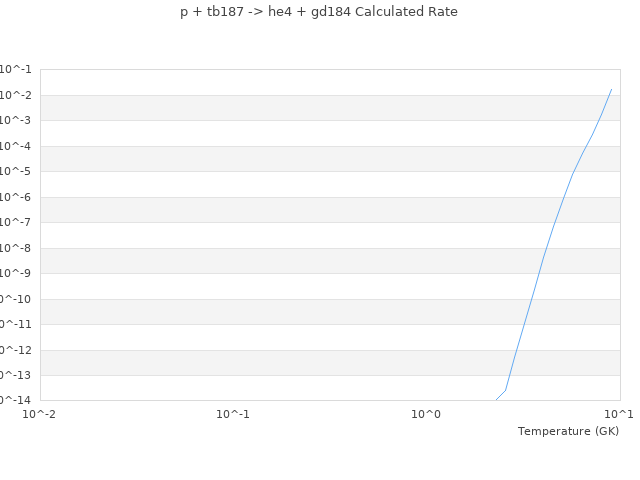

| View Graph | |
