Datapoints for p + tb188 -> n + dy188
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.967220e-69 |
| 0.15 | 2.453749e-44 |
| 0.2 | 9.286338e-33 |
| 0.3 | 2.344812e-22 |
| 0.4 | 7.221073e-18 |
| 0.5 | 2.030640e-15 |
| 0.6 | 7.957804e-14 |
| 0.7 | 1.223362e-12 |
| 0.8 | 1.154133e-11 |
| 0.9 | 8.247135e-11 |
| 1 | 4.956753e-10 |
| 1.5 | 9.862378e-07 |
| 2 | 4.247161e-04 |
| 2.5 | 4.956747e-02 |
| 3 | 1.840354e+00 |
| 3.5 | 2.621994e+01 |
| 4 | 1.731096e+02 |
| 4.5 | 6.307911e+02 |
| 5 | 1.482702e+03 |
| 6 | 3.734289e+03 |
| 7 | 6.772399e+03 |
| 8 | 1.744807e+04 |
| 9 | 1.074208e+05 |
| 10 | 2.364997e+06 |

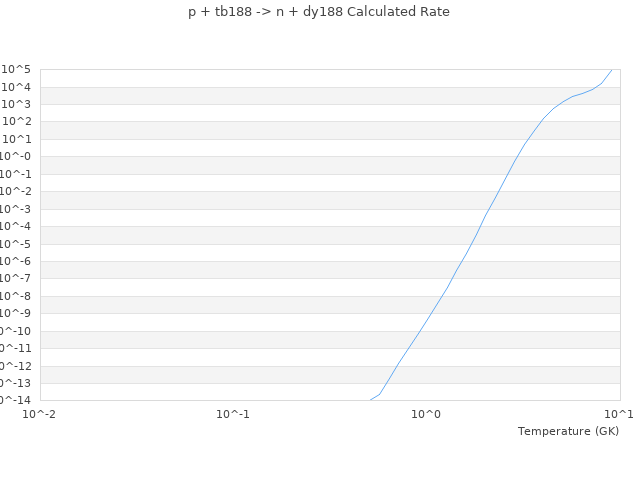

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
