Datapoints for he4 + gd186 -> p + tb189
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-311 |
| 0.3 | 1.847624e-203 |
| 0.4 | 2.515562e-151 |
| 0.5 | 2.337170e-121 |
| 0.6 | 3.492426e-102 |
| 0.7 | 5.795664e-89 |
| 0.8 | 2.541957e-79 |
| 0.9 | 5.719195e-72 |
| 1 | 3.716113e-66 |
| 1.5 | 1.438263e-48 |
| 2 | 6.456999e-39 |
| 2.5 | 2.520956e-32 |
| 3 | 2.160760e-27 |
| 3.5 | 1.499800e-23 |
| 4 | 1.667458e-20 |
| 4.5 | 4.570085e-18 |
| 5 | 4.210415e-16 |
| 6 | 3.419545e-13 |
| 7 | 3.936368e-11 |
| 8 | 1.907082e-09 |
| 9 | 9.012718e-08 |
| 10 | 8.095639e-06 |

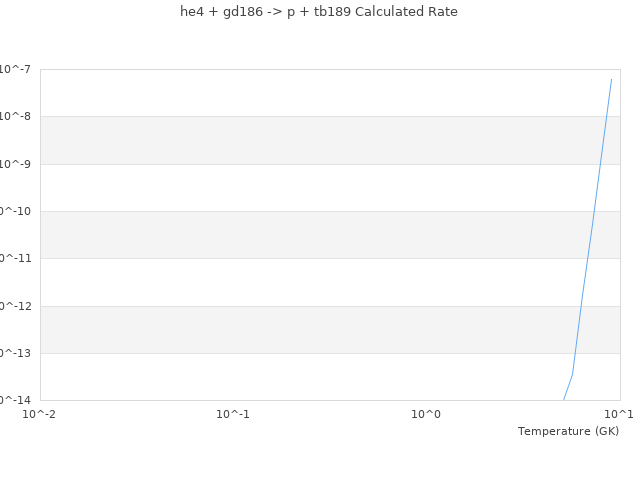

| View Graph | |
