Datapoints for p + tb190 -> n + dy190
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.813737e-69 |
| 0.15 | 1.141757e-44 |
| 0.2 | 4.417144e-33 |
| 0.3 | 1.213987e-22 |
| 0.4 | 4.077936e-18 |
| 0.5 | 1.235812e-15 |
| 0.6 | 5.151778e-14 |
| 0.7 | 8.330481e-13 |
| 0.8 | 8.190200e-12 |
| 0.9 | 6.053387e-11 |
| 1 | 3.740289e-10 |
| 1.5 | 8.061988e-07 |
| 2 | 3.578986e-04 |
| 2.5 | 4.224118e-02 |
| 3 | 1.575052e+00 |
| 3.5 | 2.249708e+01 |
| 4 | 1.489806e+02 |
| 4.5 | 5.452310e+02 |
| 5 | 1.289057e+03 |
| 6 | 3.296006e+03 |
| 7 | 6.080887e+03 |
| 8 | 1.591477e+04 |
| 9 | 9.907326e+04 |
| 10 | 2.189190e+06 |

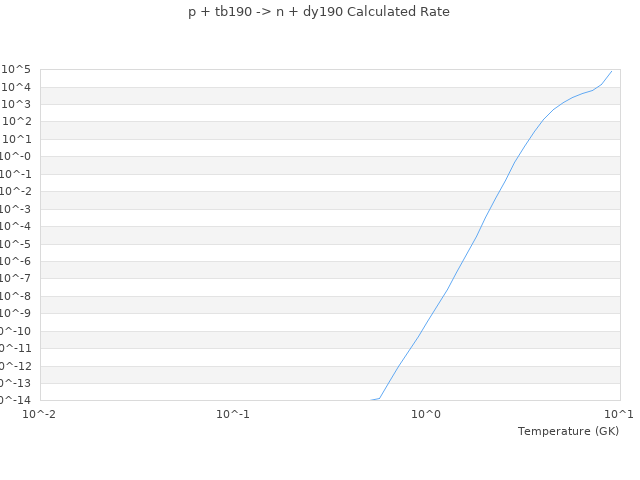

| View Graph | |
