Datapoints for he4 + gd188 -> p + tb191
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-309 |
| 0.3 | 5.552100e-202 |
| 0.4 | 3.623706e-150 |
| 0.5 | 2.183956e-120 |
| 0.6 | 2.441631e-101 |
| 0.7 | 3.277543e-88 |
| 0.8 | 1.219248e-78 |
| 0.9 | 2.400352e-71 |
| 1 | 1.394841e-65 |
| 1.5 | 3.705245e-48 |
| 2 | 1.334172e-38 |
| 2.5 | 4.529624e-32 |
| 3 | 3.553134e-27 |
| 3.5 | 2.336743e-23 |
| 4 | 2.521317e-20 |
| 4.5 | 6.817215e-18 |
| 5 | 6.262485e-16 |
| 6 | 5.133404e-13 |
| 7 | 5.961364e-11 |
| 8 | 2.861198e-09 |
| 9 | 1.299100e-07 |
| 10 | 1.077343e-05 |

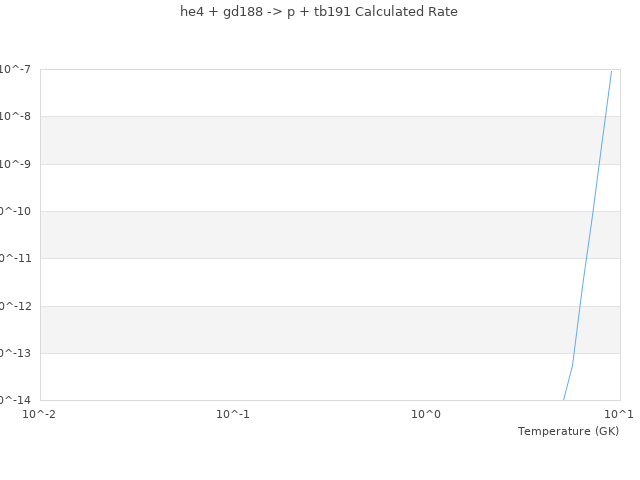

| View Graph | |
