Datapoints for p + tb196 -> dy197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.060799e-132 |
| 0.15 | 2.589688e-79 |
| 0.2 | 6.428537e-54 |
| 0.3 | 1.005750e-31 |
| 0.4 | 2.974696e-23 |
| 0.5 | 1.586454e-19 |
| 0.6 | 1.045132e-17 |
| 0.7 | 1.037858e-16 |
| 0.8 | 4.528333e-16 |
| 0.9 | 1.411636e-15 |
| 1 | 3.941236e-15 |
| 1.5 | 9.755593e-13 |
| 2 | 4.334360e-10 |
| 2.5 | 1.136375e-07 |
| 3 | 1.000175e-05 |
| 3.5 | 2.614299e-04 |
| 4 | 2.218064e-03 |
| 4.5 | 7.298757e-03 |
| 5 | 1.147228e-02 |
| 6 | 7.114639e-03 |
| 7 | 2.476522e-03 |
| 8 | 1.766986e-03 |
| 9 | 7.412685e-03 |
| 10 | 4.286062e-01 |

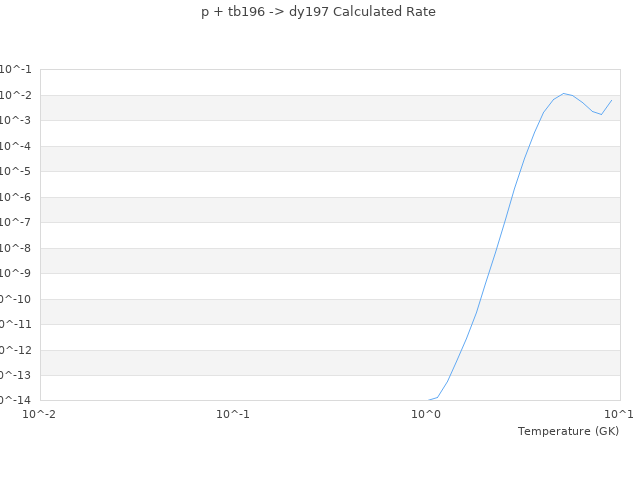

| View Graph | |
