Datapoints for p + tb196 -> n + dy196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.617049e-68 |
| 0.15 | 8.317238e-44 |
| 0.2 | 3.489637e-32 |
| 0.3 | 7.973079e-22 |
| 0.4 | 2.069772e-17 |
| 0.5 | 4.990091e-15 |
| 0.6 | 1.726178e-13 |
| 0.7 | 2.406235e-12 |
| 0.8 | 2.104386e-11 |
| 0.9 | 1.418638e-10 |
| 1 | 8.155078e-10 |
| 1.5 | 1.464543e-06 |
| 2 | 6.187150e-04 |
| 2.5 | 7.196827e-02 |
| 3 | 2.648172e+00 |
| 3.5 | 3.696933e+01 |
| 4 | 2.365017e+02 |
| 4.5 | 8.277061e+02 |
| 5 | 1.858033e+03 |
| 6 | 4.249906e+03 |
| 7 | 7.096198e+03 |
| 8 | 1.740021e+04 |
| 9 | 1.070498e+05 |
| 10 | 2.503435e+06 |

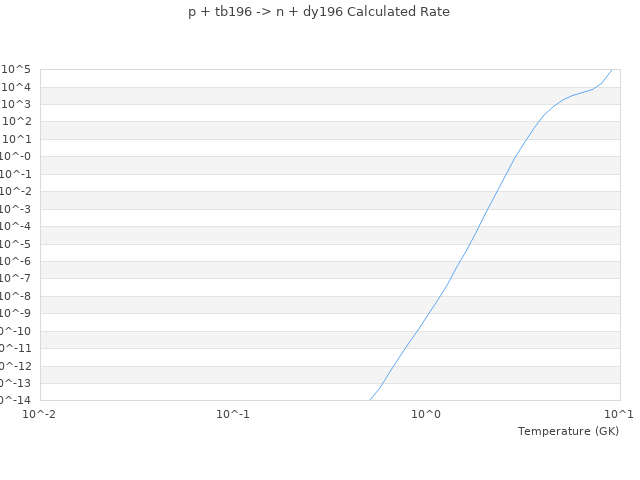

| View Graph | |
