Datapoints for p + tb197 -> n + dy197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.802653e-69 |
| 0.15 | 1.470885e-44 |
| 0.2 | 7.154590e-33 |
| 0.3 | 2.302439e-22 |
| 0.4 | 8.021810e-18 |
| 0.5 | 2.441159e-15 |
| 0.6 | 1.012843e-13 |
| 0.7 | 1.627319e-12 |
| 0.8 | 1.590661e-11 |
| 0.9 | 1.170229e-10 |
| 1 | 7.205433e-10 |
| 1.5 | 1.539254e-06 |
| 2 | 6.756699e-04 |
| 2.5 | 7.795894e-02 |
| 3 | 2.807755e+00 |
| 3.5 | 3.835767e+01 |
| 4 | 2.412721e+02 |
| 4.5 | 8.353286e+02 |
| 5 | 1.865723e+03 |
| 6 | 4.278460e+03 |
| 7 | 7.213555e+03 |
| 8 | 1.778270e+04 |
| 9 | 1.084042e+05 |
| 10 | 2.454670e+06 |

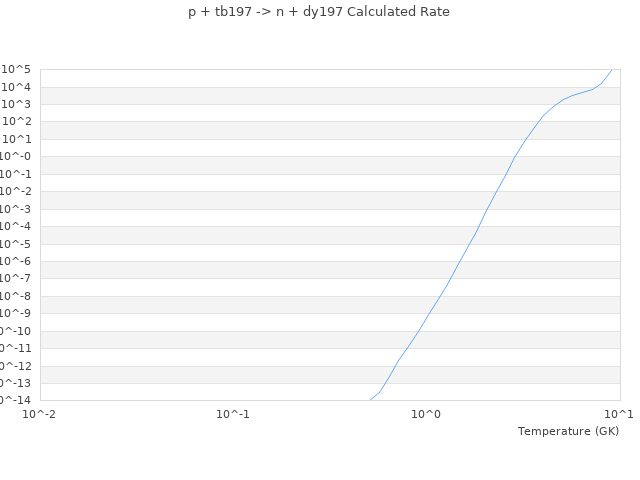

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
