Datapoints for p + tb197 -> he4 + gd194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.004475e-209 |
| 0.15 | 3.199707e-136 |
| 0.2 | 8.356555e-98 |
| 0.3 | 2.369711e-60 |
| 0.4 | 1.579029e-43 |
| 0.5 | 8.937032e-35 |
| 0.6 | 9.105434e-30 |
| 0.7 | 1.103275e-26 |
| 0.8 | 1.170093e-24 |
| 0.9 | 3.055164e-23 |
| 1 | 3.468285e-22 |
| 1.5 | 5.958166e-19 |
| 2 | 1.474992e-16 |
| 2.5 | 2.242509e-14 |
| 3 | 2.014646e-12 |
| 3.5 | 9.696735e-11 |
| 4 | 2.449104e-09 |
| 4.5 | 3.379464e-08 |
| 5 | 2.747403e-07 |
| 6 | 5.410330e-06 |
| 7 | 4.077911e-05 |
| 8 | 2.458771e-04 |
| 9 | 2.262840e-03 |
| 10 | 5.513664e-02 |

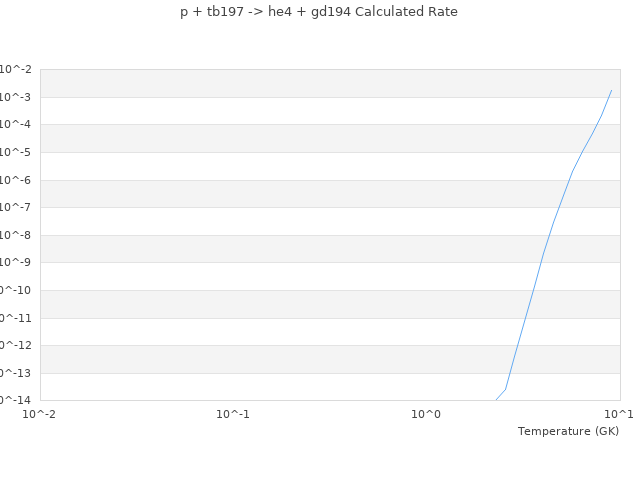

| View Graph | |
