Datapoints for he4 + gd196 -> p + tb199
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 4.889531e-273 |
| 0.4 | 3.584353e-203 |
| 0.5 | 8.293534e-163 |
| 0.6 | 8.341785e-137 |
| 0.7 | 9.524604e-119 |
| 0.8 | 1.735478e-105 |
| 0.9 | 2.573111e-95 |
| 1 | 3.084278e-87 |
| 1.5 | 1.072746e-62 |
| 2 | 2.098668e-49 |
| 2.5 | 1.399031e-40 |
| 3 | 3.509720e-34 |
| 3.5 | 2.388955e-29 |
| 4 | 1.260184e-25 |
| 4.5 | 9.964730e-23 |
| 5 | 1.880795e-20 |
| 6 | 3.494565e-17 |
| 7 | 6.594314e-15 |
| 8 | 5.537758e-13 |
| 9 | 6.257133e-11 |
| 10 | 2.243122e-08 |

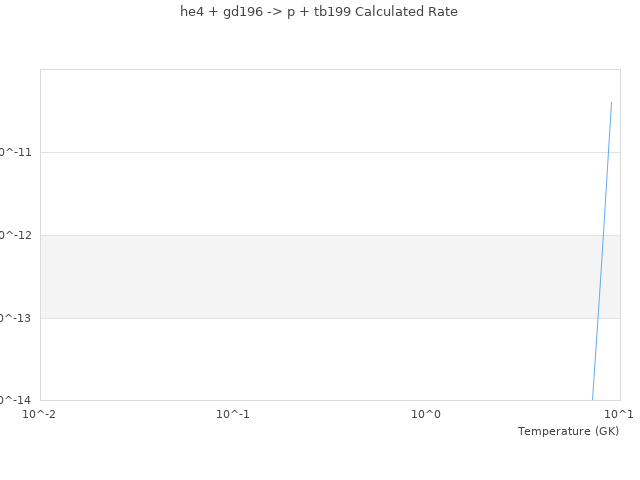

| View Graph | |
