Datapoints for p + tb200 -> he4 + gd197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.326799e-211 |
| 0.15 | 2.578262e-137 |
| 0.2 | 1.123646e-98 |
| 0.3 | 5.165033e-61 |
| 0.4 | 4.130140e-44 |
| 0.5 | 2.482959e-35 |
| 0.6 | 2.541053e-30 |
| 0.7 | 3.011595e-27 |
| 0.8 | 3.086525e-25 |
| 0.9 | 7.752861e-24 |
| 1 | 8.463905e-23 |
| 1.5 | 1.253713e-19 |
| 2 | 2.959810e-17 |
| 2.5 | 4.655608e-15 |
| 3 | 4.578354e-13 |
| 3.5 | 2.502085e-11 |
| 4 | 7.333719e-10 |
| 4.5 | 1.187084e-08 |
| 5 | 1.134793e-07 |
| 6 | 3.037529e-06 |
| 7 | 2.956659e-05 |
| 8 | 2.137129e-04 |
| 9 | 2.155458e-03 |
| 10 | 5.207216e-02 |

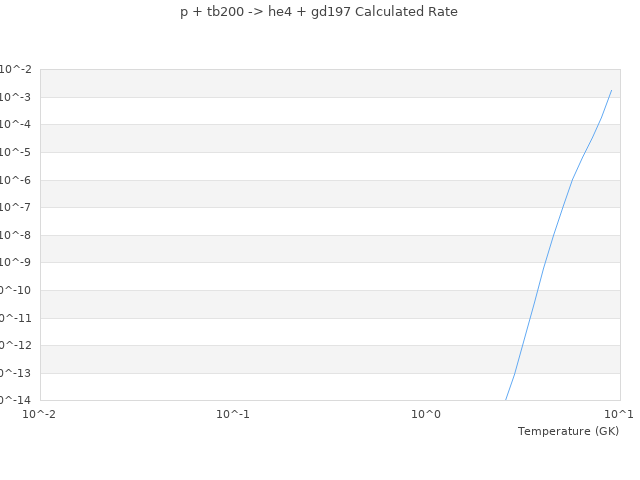

| View Graph | |
